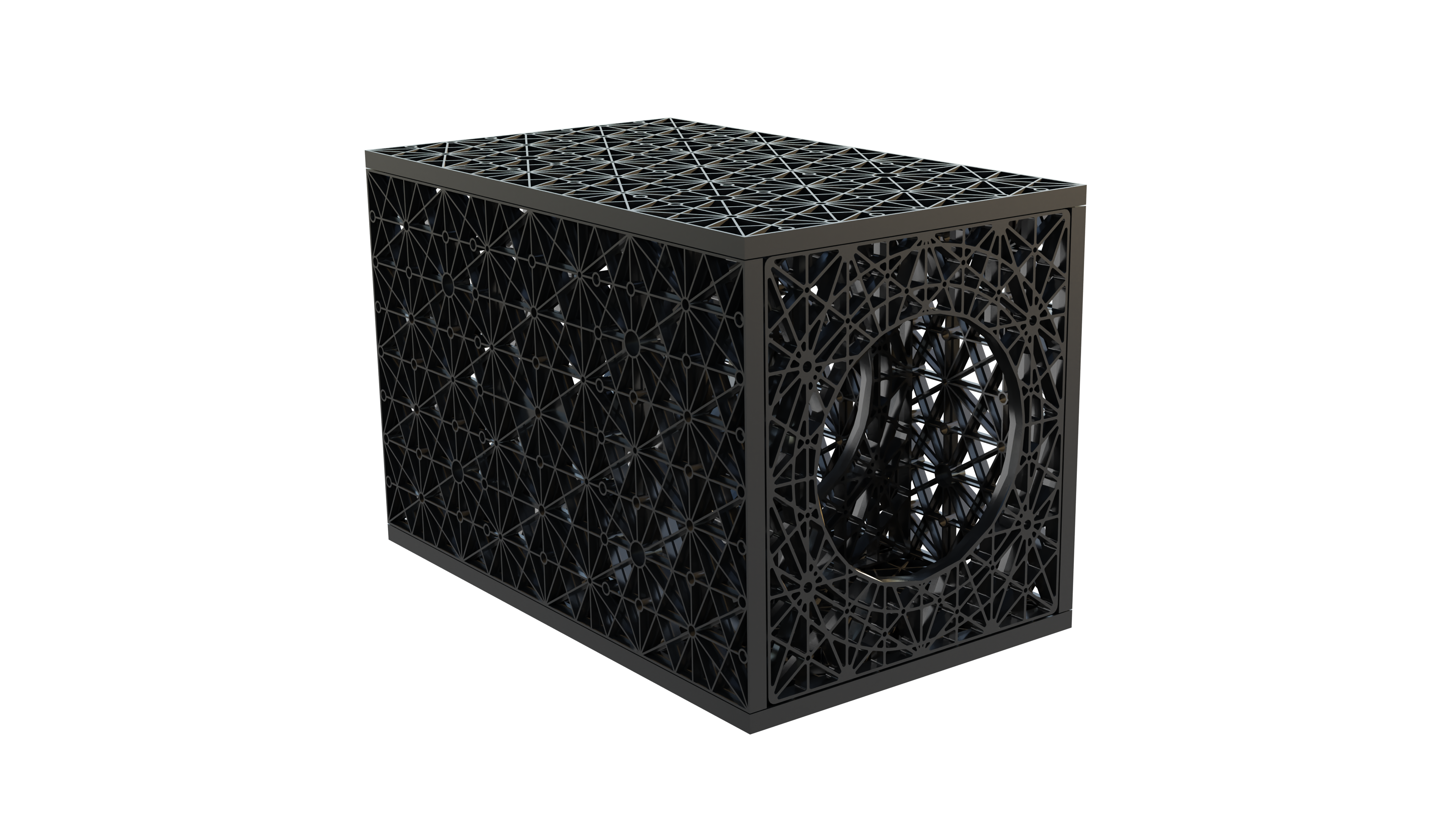

Atlantis Flo-Channel®
Flo-Channel is an ecological drainage channel system designed for efficient stormwater management. It captures and filters water at the source, transporting or dispersing clean water into the ground for sustainable water management.
Product Gallery

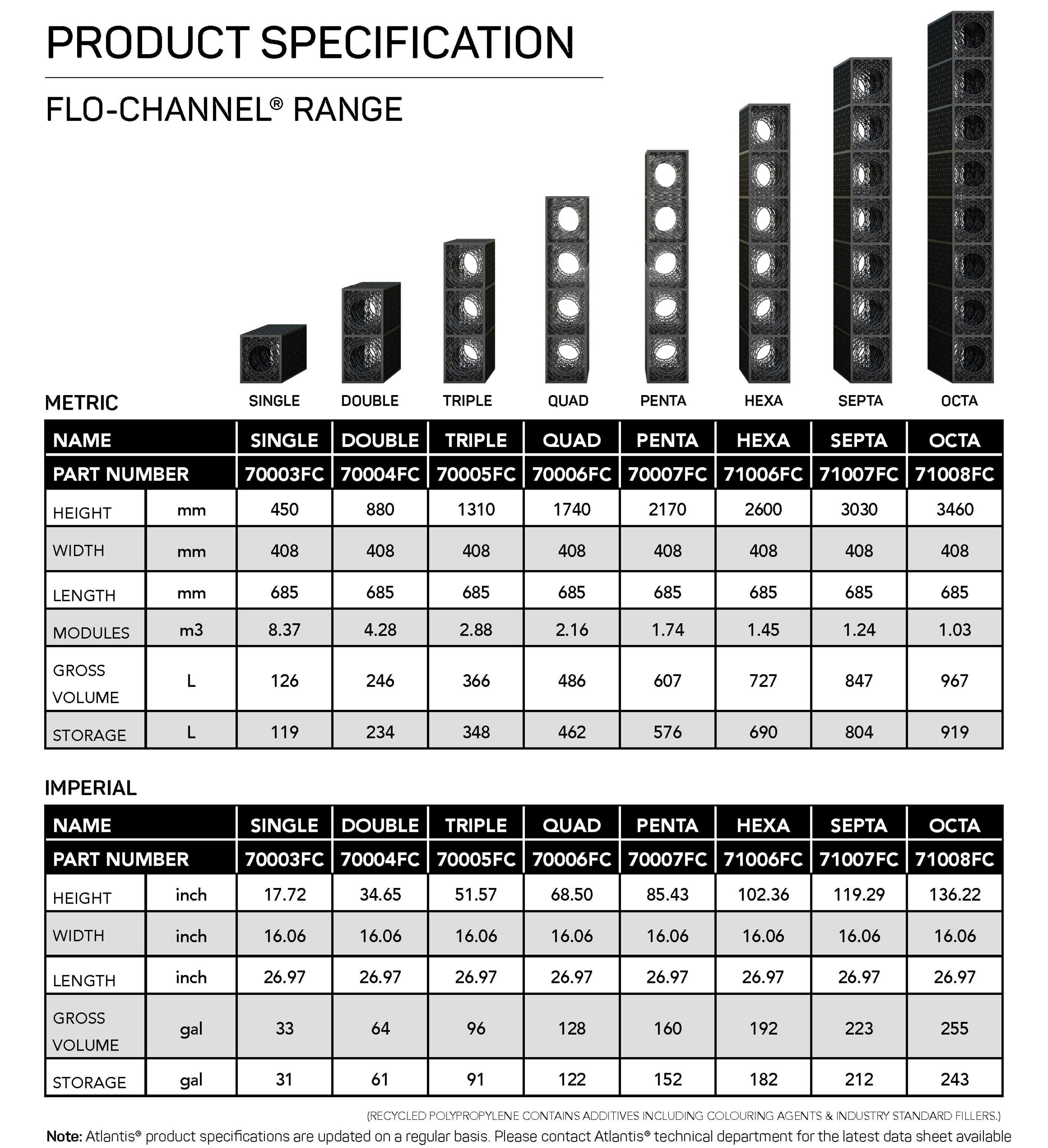

Size Comparison
| Specification | Single | Double | Triple | Quad | Penta | Hexa | Septa | Octa |
|---|---|---|---|---|---|---|---|---|
| Height |
450 mm
17.72"
|
880 mm
34.65"
|
1310 mm
51.57"
|
1740 mm
68.5"
|
2170 mm
85.43"
|
2600 mm
102.36"
|
3030 mm
119.29"
|
3460 mm
136.22"
|
| Width |
408 mm
16.06"
|
408 mm
16.06"
|
408 mm
16.06"
|
408 mm
16.06"
|
408 mm
16.06"
|
408 mm
16.06"
|
408 mm
16.06"
|
408 mm
16.06"
|
| Length |
685 mm
26.97"
|
685 mm
26.97"
|
685 mm
26.97"
|
685 mm
26.97"
|
685 mm
26.97"
|
685 mm
26.97"
|
685 mm
26.97"
|
685 mm
26.97"
|
| Gross Volume |
126 L
33 gal
|
246 L
64 gal
|
366 L
96 gal
|
486 L
128 gal
|
607 L
160 gal
|
727 L
192 gal
|
847 L
223 gal
|
967 L
255 gal
|
| Storage Capacity |
119 L
31 gal
|
234 L
61 gal
|
348 L
91 gal
|
462 L
122 gal
|
576 L
152 gal
|
690 L
182 gal
|
804 L
212 gal
|
919 L
243 gal
|
| Modules per m³ | 8.37 | 4.28 | 2.88 | 2.16 | 1.74 | 1.45 | 1.24 | 1.03 |
Key Features
Captures water at the source
Integrated filtration system
Removes gross pollutants and silt
Modular channel design
Easy installation and maintenance
Durable polypropylene construction
Ecological water management
Versatile application options
Benefits
Prevents pollutants from entering stormwater systems
Reduces strain on municipal drainage infrastructure
Promotes natural water infiltration
Cost-effective drainage solution
Low maintenance requirements
Environmentally sustainable approach
Protects local waterways and ecosystems
Meets stormwater quality regulations
Applications
Civil Engineering
- Roadway drainage systems
- Parking lot drainage
- Development site water management
- Infrastructure projects
Environmental
- Stormwater filtration
- Pollution prevention
- Watershed protection
- Ecosystem preservation
Transportation
- Highway drainage
- Street and roadway systems
- Pathway drainage
Water Management
- Surface water collection
- Stormwater conveyance
- Water quality treatment
- Infiltration systems
Other Applications
- Commercial site drainage
- Industrial facilities
- Residential developments
Ready to Transform Your Next Project?
Contact our team of experts for personalized solutions and technical support.
Regional Information
Product specifications and applications by region
Regional Overview
Atlantis Flo-Channel® is essential for British Columbia's high-rainfall areas. The system efficiently manages runoff from BC's frequent precipitation while protecting streams, rivers, and coastal waters. Ideal for projects throughout the Lower Mainland, Vancouver Island, and coastal communities.
Notable Projects
Project 1
Vancouver municipal drainage systems
Project 2
Surrey commercial developments
Project 3
Victoria roadway projects
Climate Considerations
Designed for BC's wet climate with annual rainfall exceeding 1000mm in many areas. Handles sustained rainfall and rapid runoff typical of coastal BC. Operates reliably in temperatures from -10°C to +30°C.
Industry Applications
Transportation
Perfect for BC highways and roads where runoff must be managed before entering sensitive waterways. Essential for Sea-to-Sky corridor and coastal highway systems.
Environmental
Critical for protecting BC's salmon streams and coastal ecosystems. Filters pollutants before they reach watersheds, supporting BC's environmental protection goals.
Commercial
Ideal for BC parking lots, commercial sites, and developments requiring effective stormwater management to meet municipal discharge requirements.
Regional Overview
In Alberta, Atlantis Flo-Channel® manages spring melt runoff and summer storm events efficiently. The system handles Alberta's variable precipitation patterns while meeting municipal stormwater quality requirements in Calgary, Edmonton, and growing communities.
Notable Projects
Project 1
Calgary commercial parking facilities
Project 2
Edmonton roadway drainage
Project 3
Red Deer development sites
Climate Considerations
Built for Alberta's extreme conditions with temperature range from -40°C to +30°C. Handles rapid spring melt, intense summer thunderstorms, and freeze-thaw cycles common in Alberta's continental climate.
Industry Applications
Oil And Gas
Essential for Alberta industrial sites requiring containment and treatment of surface runoff. Protects against contamination in energy sector facilities.
Transportation
Ideal for Alberta highways and municipal roads managing spring runoff and storm events. Reduces maintenance on drainage infrastructure.
Commercial
Perfect for Alberta commercial developments needing reliable drainage and filtration. Meets stringent municipal requirements in growing urban areas.
