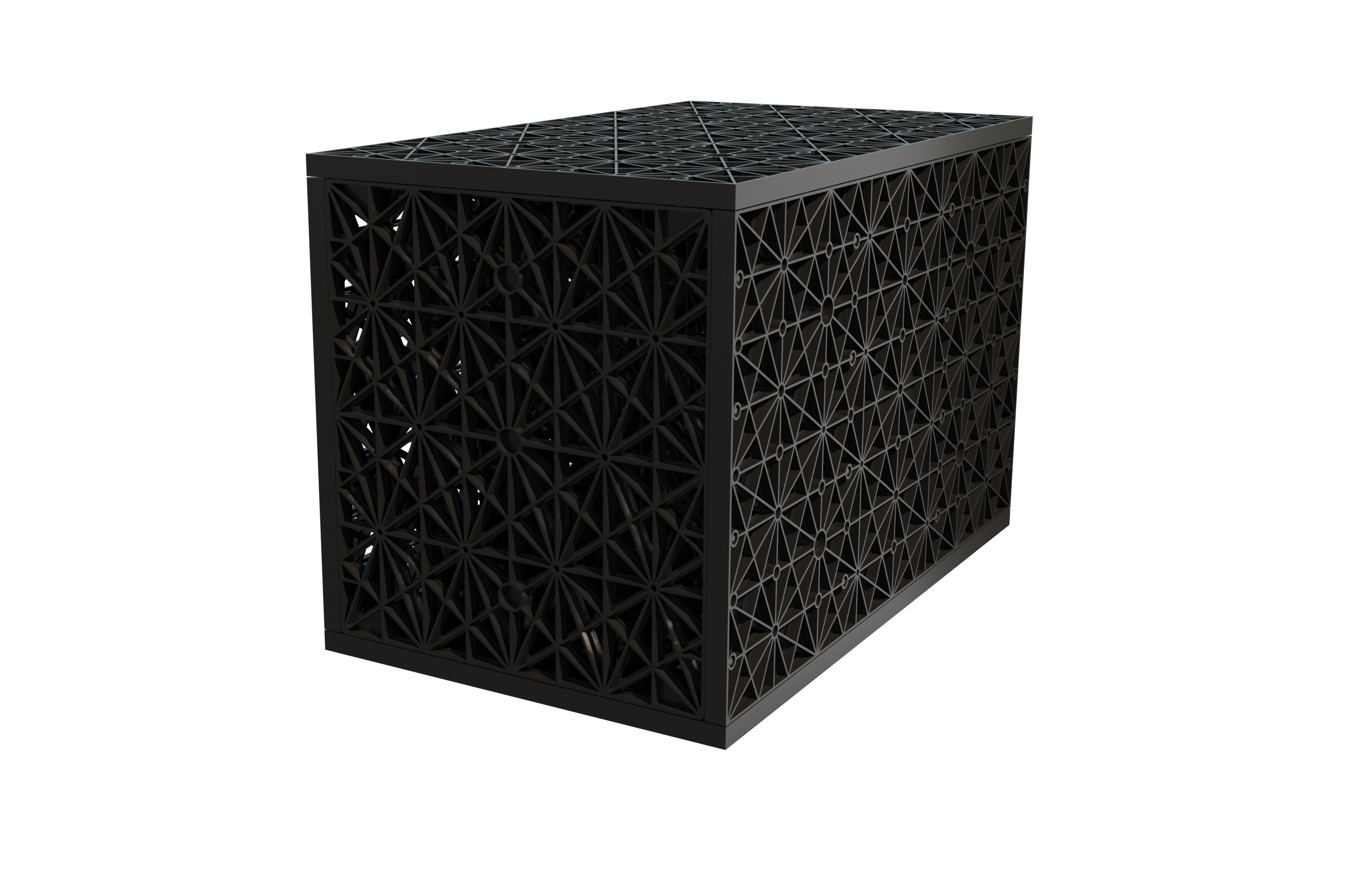

Atlantis Flo-Tank®

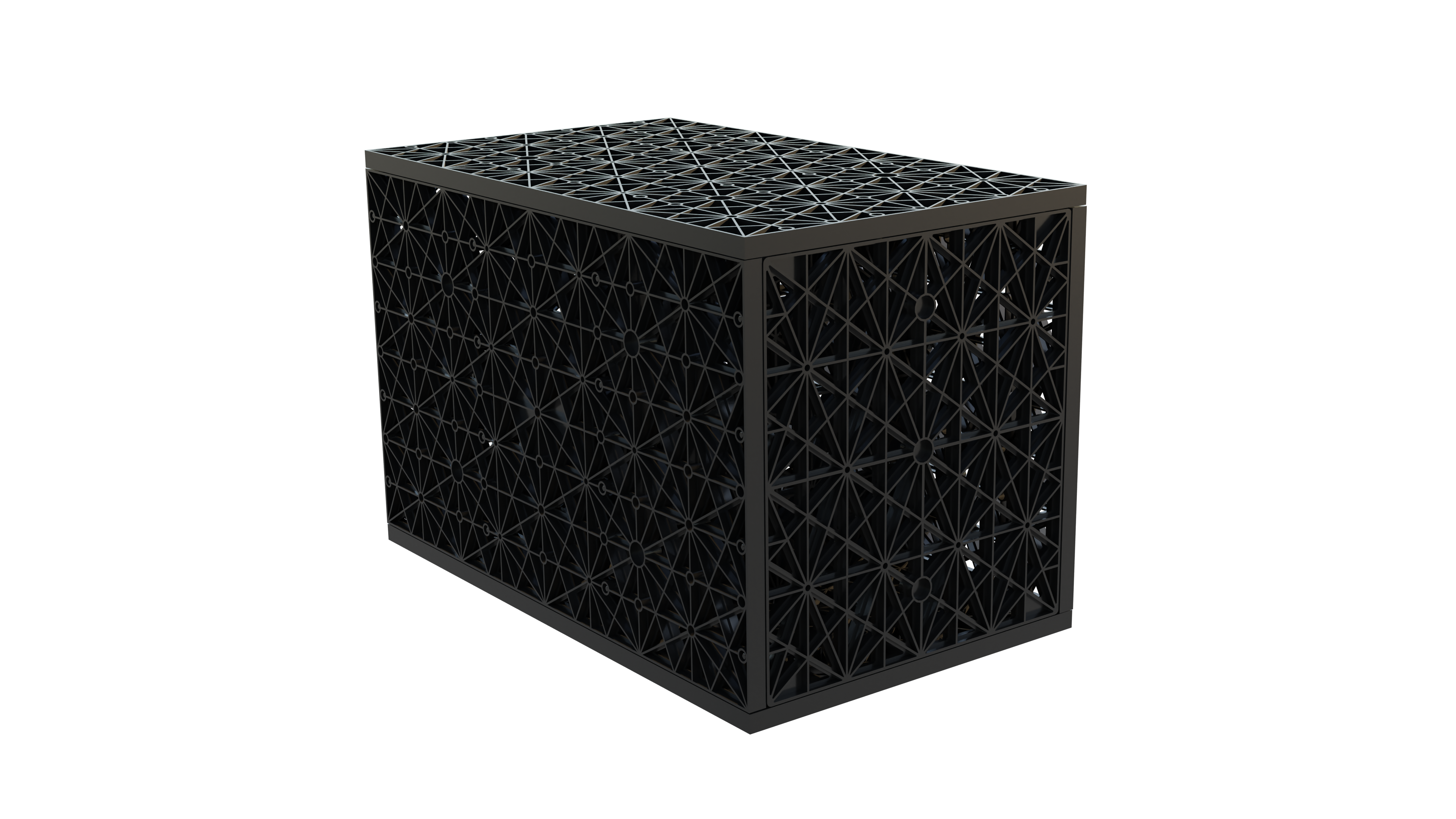

Flo-Tank is a lightweight modular tank system designed for sustainable landscape design and underground water storage. Its innovative modular design allows unlimited capacity configurations adaptable to any project requirement.
Product Gallery

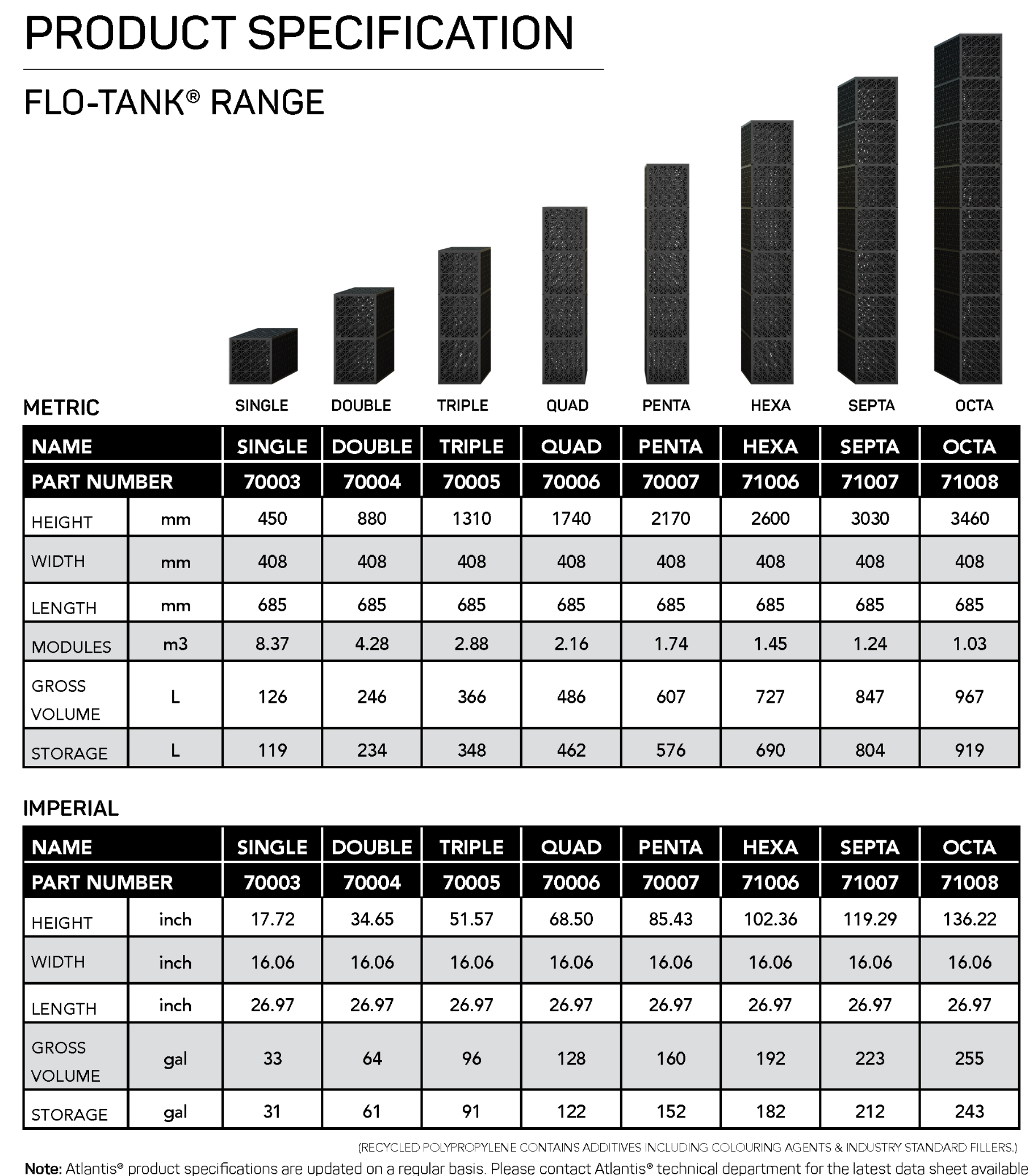

Size Comparison
| Specification | Single | Double | Triple | Quad | Penta | Hexa | Septa | Octa |
|---|---|---|---|---|---|---|---|---|
| Height |
450 mm
17.72"
|
880 mm
34.65"
|
1310 mm
51.57"
|
1740 mm
68.5"
|
2170 mm
85.43"
|
2600 mm
102.36"
|
3030 mm
119.29"
|
3460 mm
136.22"
|
| Width |
408 mm
16.06"
|
408 mm
16.06"
|
408 mm
16.06"
|
408 mm
16.06"
|
408 mm
16.06"
|
408 mm
16.06"
|
408 mm
16.06"
|
408 mm
16.06"
|
| Length |
685 mm
26.97"
|
685 mm
26.97"
|
685 mm
26.97"
|
685 mm
26.97"
|
685 mm
26.97"
|
685 mm
26.97"
|
685 mm
26.97"
|
685 mm
26.97"
|
| Gross Volume |
126 L
33 gal
|
246 L
64 gal
|
366 L
96 gal
|
486 L
128 gal
|
607 L
160 gal
|
727 L
192 gal
|
847 L
223 gal
|
967 L
255 gal
|
| Storage Capacity |
119 L
31 gal
|
234 L
61 gal
|
348 L
91 gal
|
462 L
122 gal
|
576 L
152 gal
|
690 L
182 gal
|
804 L
212 gal
|
919 L
243 gal
|
| Modules per m³ | 8.37 | 4.28 | 2.88 | 2.16 | 1.74 | 1.45 | 1.24 | 1.03 |
Key Features
Lightweight modular construction for easy installation
Unlimited storage capacity configurations
Customizable volume, shape, and depth
Made from durable high-density polypropylene
Comprehensive catchment area utilization
Maximizes land usage through underground installation
Minimal heat island effect
Sustainable low-impact solution
Benefits
Preserves aesthetic and functional aspects of property
Reduces installation time and labor costs
Minimizes stormwater runoff and prevents flooding
Promotes sustainable water management practices
Adaptable to residential and commercial projects
Long-term durability and performance
Environmentally sustainable approach
Helps recharge groundwater levels
Applications
Civil Engineering
- Residential installations
- Commercial properties
- Infrastructure projects
- Foundation support systems
Environmental
- Stormwater capture and storage
- Groundwater recharge systems
- Sustainable water management
- Erosion and flood prevention
Water Management

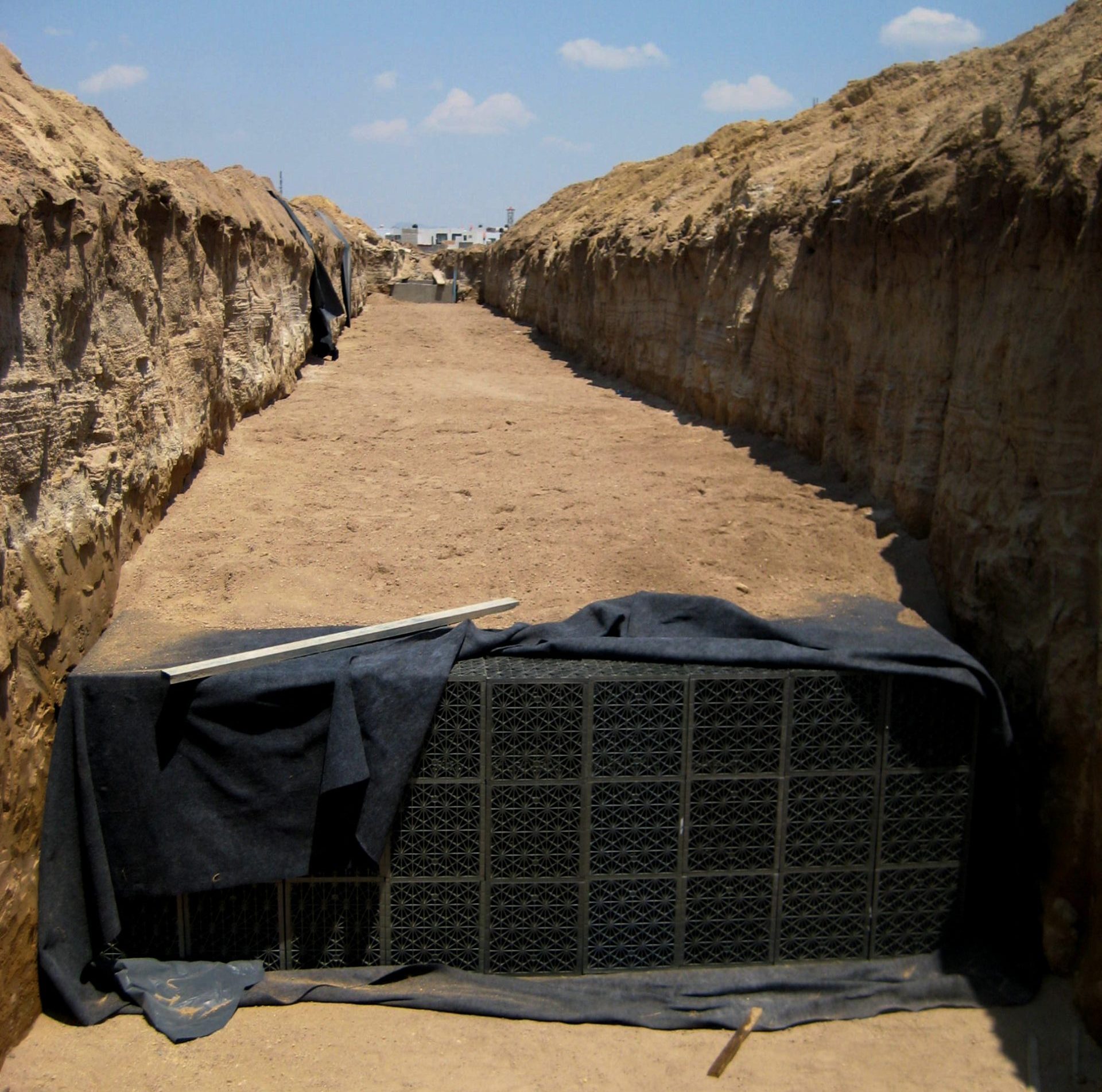

- Underground water storage
- Rainwater harvesting

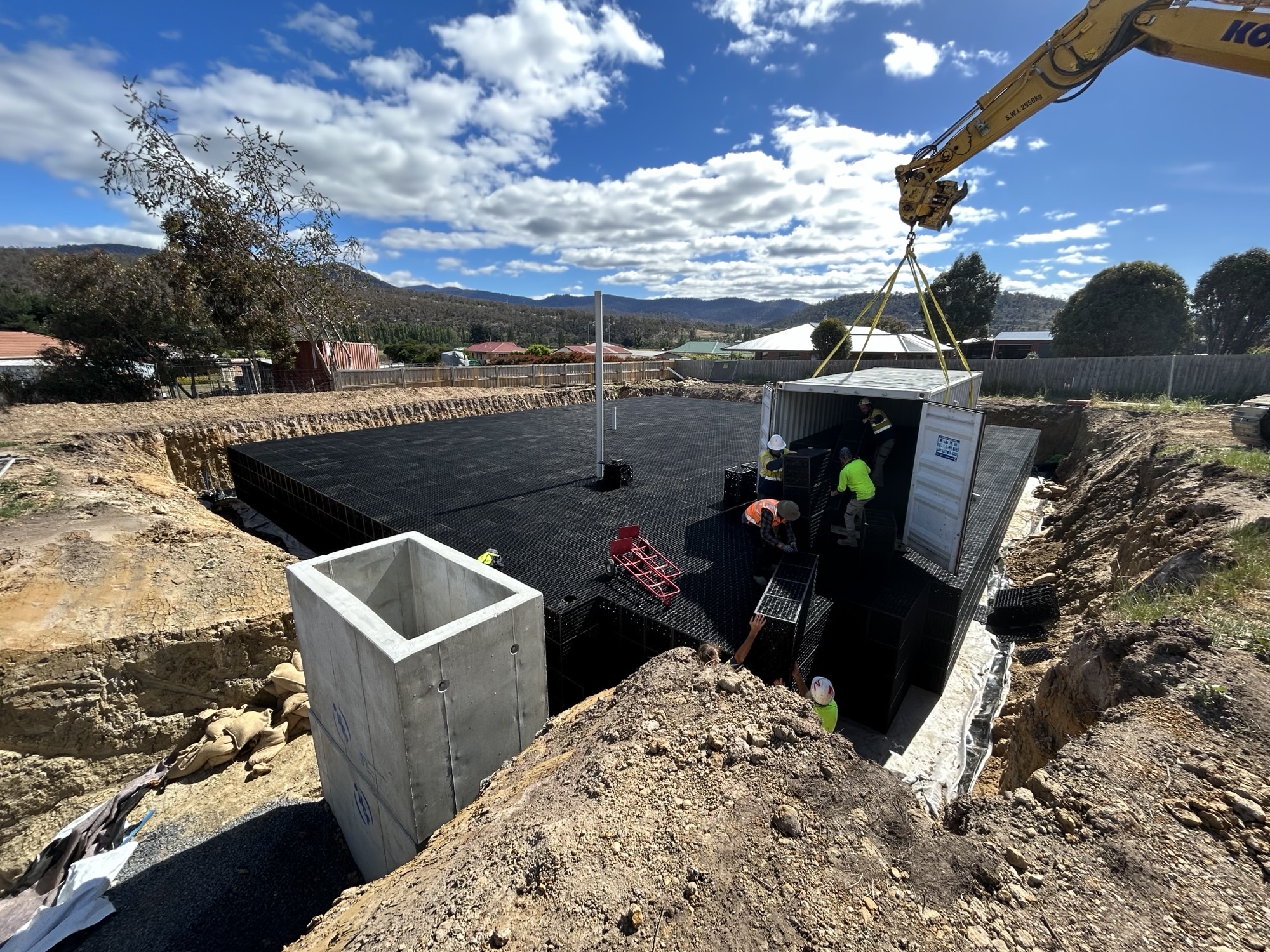

- Stormwater detention and infiltration
- Landscape irrigation supply
Other Applications
- Sustainable landscape design

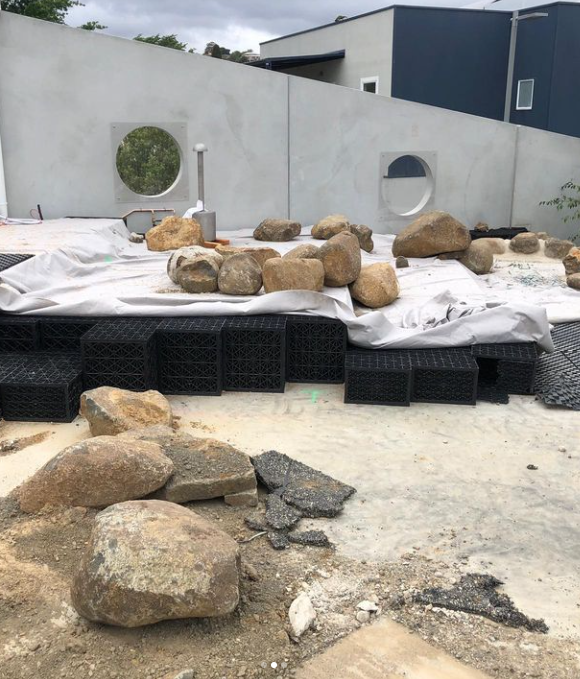

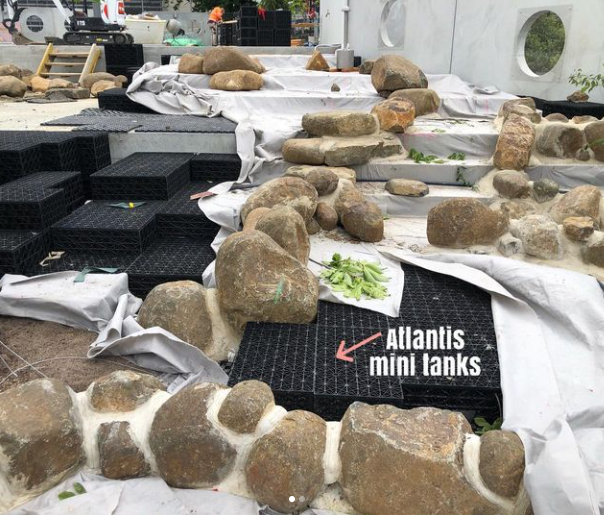

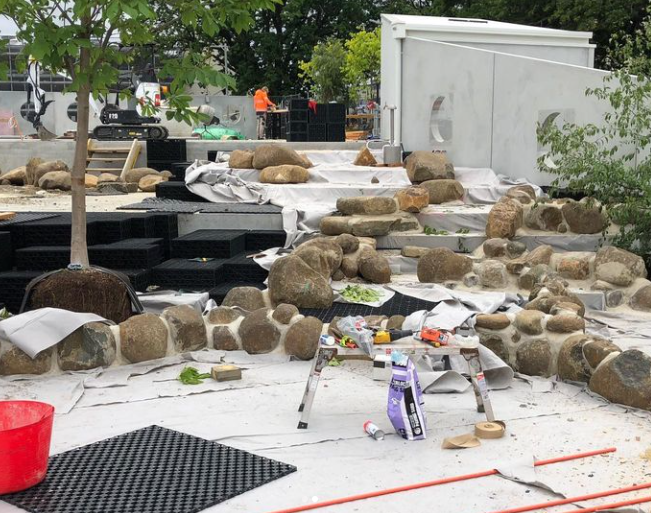

- Void fill applications
- Green infrastructure projects
Ready to Transform Your Next Project?
Contact our team of experts for personalized solutions and technical support.
Regional Information
Product specifications and applications by region
Regional Overview
The Atlantis Flo-Tank® system is ideal for British Columbia's high-rainfall environment. Its modular design efficiently manages BC's coastal precipitation while preserving valuable surface space. The system's unlimited capacity makes it perfect for both residential and commercial applications throughout Vancouver, Victoria, and the Lower Mainland.
Notable Projects
Project 1
Vancouver sustainable development projects
Project 2
Lower Mainland residential complexes
Project 3
Victoria commercial properties
Climate Considerations
Designed to handle BC's temperate rainforest climate with sustained high rainfall. The system performs excellently in temperatures ranging from -10°C to +30°C, typical of coastal BC conditions.
Industry Applications
Residential
Perfect for BC homeowners looking to manage rainwater, reduce stormwater fees, and create sustainable landscapes. Ideal for properties in high-rainfall zones like the North Shore, West Vancouver, and coastal communities.
Commercial
Excellent solution for BC commercial developments requiring substantial stormwater management. Helps meet municipal requirements in Vancouver, Burnaby, and other Lower Mainland cities.
Environmental
Supports BC's environmental initiatives by reducing strain on municipal systems, preventing erosion, and promoting natural water cycles in sensitive ecosystems.
Regional Overview
In Alberta, the Atlantis Flo-Tank® system provides reliable water storage for both urban and rural applications. Its adaptability makes it suitable for Alberta's variable precipitation patterns, from Calgary's chinook-affected climate to Edmonton's continental conditions. The system handles spring melt and summer storms efficiently.
Notable Projects
Project 1
Calgary commercial developments
Project 2
Edmonton residential communities
Project 3
Alberta agricultural operations
Climate Considerations
Built to withstand Alberta's extreme temperature fluctuations from -40°C winters to +30°C summers. The robust construction ensures reliable performance through freeze-thaw cycles and rapid weather changes.
Industry Applications
Oil And Gas
Ideal for Alberta's energy sector facilities requiring stormwater management and process water storage. Suitable for remote sites and industrial complexes.
Residential
Perfect for Alberta homeowners managing spring runoff and summer precipitation. Helps reduce impact on municipal systems in growing communities around Calgary and Edmonton.
Commercial
Excellent for Alberta commercial projects needing scalable water storage. Meets municipal requirements while maximizing usable surface area for development.
